The Beauty of Separate Systems

Wolf Wejgaard

Presented at the EuroFORML conference 1990

Abstract

A concept of separate systems is proposed for programming in Forth. The application is built in its own code space independent of the development system. This approach relieves space limits and delivers compact applications. The full interactivity of Forth can be retained.


1. Introduction

The conventional way to build an application in Forth is to extend a given system with the functionality of the application. This is the simplest way and it gives good results for small applications.

However, for larger applications there soon is a space conflict between development system and application. This conflict is solved by all sorts of clever means: using a lean development system, loading editor and assembler in high memory locations with some re-linking scheme (as long as space is still available), coding code words by hand in order to dismiss the need for the assembler, and so on.

Or solving the conflict by brute force: converting to a 32-bit system or using an extended addressing scheme as in F-PC.

The conflict could easily be solved if the two systems were separated. Then each system could be optimized for its purpose. On the one side we have the development system with all the necessary tools (editor, assembler, compiler, dictionary, debugger, ...; no need to economize on space) and on the other side we have the application program consisting only of the necessary code to fulfill its function.

This approach is already in use in the form of meta- or cross-compilers. Here we have a Forth system building an application in a separate code space. The application is separated by necessity since its code is built for a different processor.

A cross-compiler can be just as interactive as a conventional Forth system. This has been shown very nicely by the "umbilical-link approach" [ROB89].

From this it is only a small step to propose an interactive cross-compiler also for the development of applications for the same processor (host system).

There ought to be a separation since both systems serve different purposes. The host serves to build a target system using the best available tools and software engineering knowledge. The target serves to fulfill the clients needs; be robust, serviceable, trustworthy, and easily enhanced.


2. Separate systems

Let us take a look at the memory space of the separated systems.

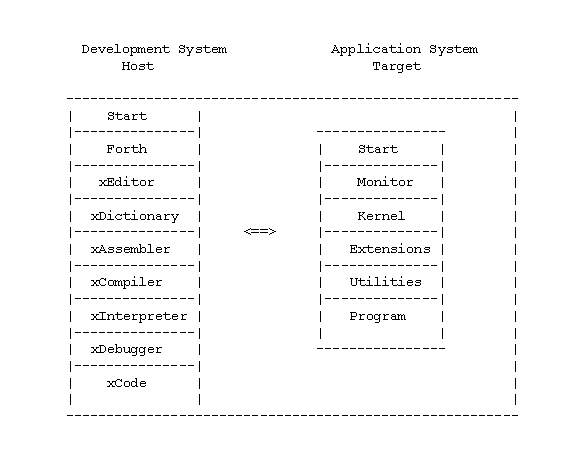

Picture of the Holon memory space

During development the target is contained as an independent program in the code space of the development system. The target is separated through a simple turnkey process.


Development system (Host)

The development system is a conventional Forth system extended for cross-compilation. It consists of:

Application system (Target)

The application system consists of the bare minimum for the application:

3. Discussion

4. Enhancements

The handling of text files can be simplified if we use only one text file for the whole project. Then the dedicated development system and the text file carry the same name (with different extensions). Therefore the development system can automatically handle the text file; no file handling is needed by the programmer. (Contrast this with the elaborate file handling facilities of modern development systems.)

The utility modules are loaded into the text file (imported) once at the beginning of the project. Likewise modules may be exported as module files for use in another project.

It is quite feasible to develop a Forth program incrementally word by word in source and code. When we change a word only this word needs to be recompiled. The code of the word can be re-linked automatically with the rest of the program (the obvious way is to 'defer' every word, but there are more subtle schemes in use).

Incremental development really shines with separated systems. Programming becomes sculpturing. Words are crafted, added to the target, modified and tested immediately. When we work this way, compiling speed is an issue no more. The complete program is rarely recompiled. Most of the time we sculpture.

To test the application we call it from the cross-interpreter. A useful addition to the host is a function key that calls the main word of the application directly from the browser. Then we can switch from the host to the target and back again with a stroke of a key. The momentary main word of the target could be linked to the host via a cross-compiler directive like "program: <targetmain>", included in the target source.


5. Conclusion

The concepts described in this paper have been realized and tested in my own system, Holon. This system is still experimental although heavily used to build applications. It evolved rather painlessly, once the basic structure was right [WEJ89].

The ideal development system ought to be transparent, putting as little in the way as possible between the programmer and his program. I have found the concept of separate systems helpful to approach this goal.


6. References

RAS89: F.Raschke et al., A Databased Forth, FORML 1989, p.348-353

ROB89: A.M.Robertson, Interactive Remote Compilation for Development and Machine Integration, FORML 1989, p.354-372

WEJ89: W.Wejgaard, Not Screens Nor Files But Words, FORML 1989, p.425-430 (reprinted in SIGForth Newsletter, Volume 1, No.4, p.13-15)
